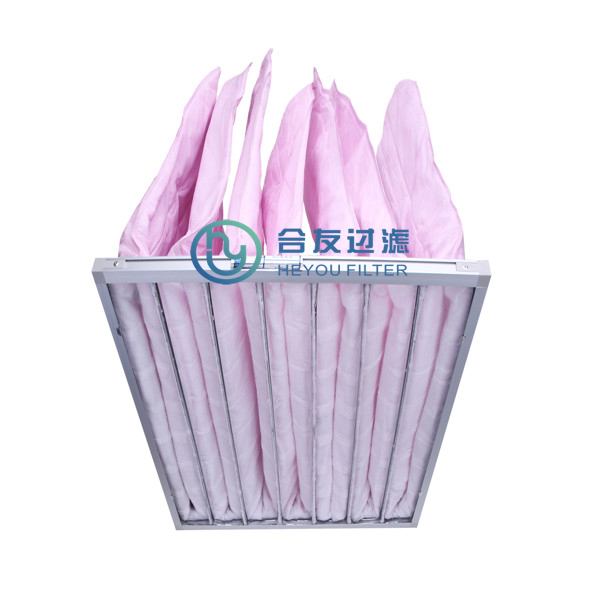

HY-ZXDH Synthetic Fiber Pocket Filter
Applications:
Middle or end filtration of commercial and industrial ventilation systems and air conditioning systems
1．Clean room fresh air conditioning system, fresh air unit in the middle filter
2. Secondary or final filtration of central air conditioning system
3．Air purification equipment main filtration
4．The pre-filtration of high efficiency filter
Material and Features:
Filter material: The use of elastic and break resistance of the ultrafine polyester fiber (PET) filter material, from the air inlet to the air outlet surface step by step encryption, the air outlet surface warm and smooth treatment
Frame: galvanized iron frame, aluminum alloy frame, stainless steel frame, plastic frame
Features: multi-bag design, large ventilation, large dust capacity; Using seamless high temperature fusion technology, with good air tightness and bonding strength; Frameless design can be selected, and the outer frame and support frame can be reused
Technical parameters:
Filter level: F5, F6, F7, F8 (EN779)
Filter object: Pre-filter particles ≥1μm
Filtration efficiency: 45%, 65%, 85% (ASHRAE52.1-1992)
Humidity resistance (relative humidity): ≤ 100%RH
Temperature resistance :≤100℃
Instantaneous temperature :≤120℃
Specification :
Model | Dimensions | Bag number | Rated Air Flow(m3/h) Initial Pressure Drop(Pa) |
H(mm) | W(mm) | T(mm) |
HY-ZXDH | 592 | 592 | 600 | 6 | 3400/40 | 4200/60 |
290 | 595 | 46 | 3 | 1700/40 | 2100/60 |
Remark: other specifications can be customized |
