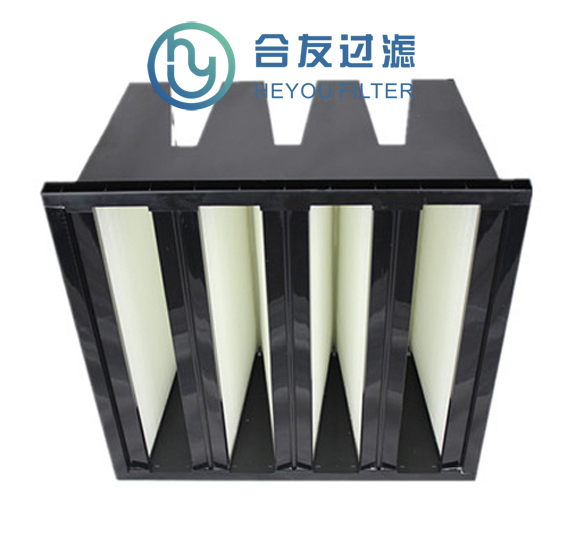

HY-VZHV V-Bank Combined Filter
Advantages:
High air volume
Low resistance
Extended filter area
With mounting flange frame, interchangeable with common bag filter
Applications:
Intermediate or terminal filtration for commercial and industrial ventilation and air conditioning systems
1．Clean room fresh air conditioning system, dust-free workshop air supply intermediate or final filtration
2．Large air volume demand, installation space tight ventilation system filtration
3．Widely used in electronics, optics, semiconductors, surface treatment, coating, chemical, biopharmaceutical, hospital, automotive industry and other fields
Material and Features:
Filter material: ultrafine glass fiber paper, artificial fiber filter paper
Frame: plastic frame, aluminum alloy frame, galvanized iron frame, stainless steel frame
Separator: hot melt adhesive
Sealant: two component AB adhesive
Sealing strip: Foam EVA
Features: low resistance and high efficiency, large ventilation, easy installation, can be interchangeable with common bag filter; From the process and shape, it is divided into FV single flange type of plastic frame and HV box type of metal frame
Technical parameters:
Filter level: F6, F7, F8, F9, H10, H11, H12, H13, H14 (EN779)
Filter object: ≥0.5μm, ≥0.3μm
Filtration efficiency: 65%, 75%, 85%, 95%, 99%, 99.9%, 99.99%, 99.999% (ASHRAE52.1-1992)
Humidity resistance (relative humidity) : ≤100%RH
Temperature resistance: ≤80℃
Instant temperature resistance: ≤100℃
Specification :
Model | Dimensions | Filter Area | Rated Air Flow
(m3/h) | Filtration Grade | Filter Efficiency % |
H(mm) | H(mm) | H(mm) |
FV Single Flange | 592 | 287 | 292 | 10.40 | 400 | F6-F9 H10-H14 | 65%-95% 99.9%-99.999% |
592 | 592 | 292 | 20.81 | 3400 |
HV Box-type | 305 | 610 | 292 | 8.06 | 1700 |
610 | 610 | 292 | 18.26 | 3400 |
