HY-FFU H13 HEPA Low Noise Fan Filter Unit (FFU)
Fan Filter Units (FFU) are the most energy efficient fan filter units on the market today. Designed specifically for use in cleanrooms, pharmacies, pharmaceutical manufacturing facilities and laboratories, the FFU delivers high volumes of HEPA/ULPA filter air at low sound levels.
Applications:
1) Low power consumption, low operation cost, wind speed adjustable.
2) Special wind tunnel design and well distributed air flow, noise proof.
3) Light weight design, sleeve type installation, easy installation and maintenance.
4) Can implement computer remote variable voltage, frequency conversion, speed control.
Specification :
Model | FFU-6161 | FFU-5757 | FFU-61122 | FFU-57117 |
Boundary Dimension | 610*640*250mm | 575*575*250mm | 615*1225*250mm | 575*1175*250mm |
Box Material | Cold-rolled sheet, Super Galum,Aluminum,SUS304/430 Sanding or tainless steel |
Main Filter | Size | 610*610*69mm | 570*570*69mm | 610*1220*69mm | 570*1170*69mm |
Filter Material | Ultra-fine fibre glass |
Blowing Rate | 650 m3/h | 550m3/h | 1300m3/h | 1200m3/h |
Surface wind velocity | 0.35-0.6m/s | 0.35-0.6m/s | 0.35-0.6m/s | 0.35-0.5m/s |
Filter Efficiency | 99.99% 0.3μm |
Initial Pressure | 125Pa |
Pre-filter | Size | 390*390*21 | 390*390*21 | 430*390*21 | 430*390*21 |
Filter level | G3 |
Initial Pressure | 40Pa |
Fan Type | Germany EBM |
Power Supply | 220V/50HZ |
External Static Pressure | 50-100Pa |
Output Power | 140-150W |
Adjustment Control | Stepless switch with power guide and fusing current protection |
Noise Intensity | <60 dB |
Alternative Option | Main Filter ULPA Ultra-high efficiency filter |
External body material can be customized according to specific requirements or working environment |
EC control system and control software |
Air inlet nozzle equipment |
Primary filter level |
Products Attention
1. Please make sure the power supply conforms to the requirement of the products before operation
2. Please make sure the products have been positioned at firm bracket, (the pre-filter) and HEPA filter have been installed.
3. The item has specific standing area, so please stand the area when maintenance is on going, don't stand other area, it would lead to unpredictable results.
Tips before use
1. Do not insert foreign objects into the air inlet of the FFU to avoid damage to the motor.
2. Do not operate the FFU with wet hands, otherwise it may casue electric shock accidents.
3. Ensure the air flow smooth to the FFU.
4. Whether the external power supply of the unit is connected and the power supply must be proper.
5. Any FFU body earth protection connected?
6. Please make sure whether the air suction port above the body and the protective film of the lower filter have been removed or not.

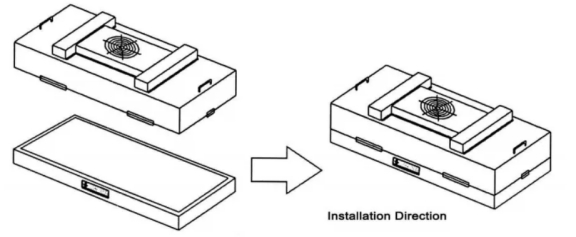

Installation of HEPA filter
Open the package of FFU and HEPA Filter.
Lift the hanging hooks of the FFU then put the HEPA filter beneath the FFU.
According to the label direction of HEPA Filter, place the HEPA filter per arrow direction, then lift FFU and put it on the HEPA Filter, to ensure positioning baffle match four corners of HEPA Filter; Next, check the connection between FFU and HEPA Filter, and make sure there is no leakage.
To avoid crashing filter net, more attention should be paid to the procedure of installation.
