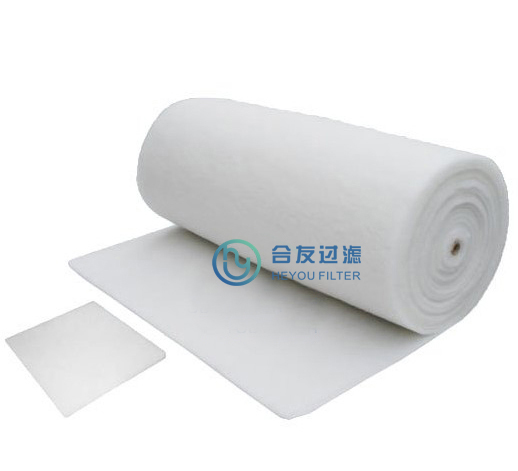

HY- AZ40 Primary filter cotton
Advantages:
Waterproofing
Low initial resistance
Elastic
Economical and practical
Applications:
Suitable for all kinds of ventilation equipment, dust removal equipment, air supply system filtration
1. Air conditioning and air ventilation system dust filtration
2. All kinds of mechanical and electrical, machine room and other equipment protective dust filtering
3. Pre-filtration of high quality spraying system and air supply system in baking device
4. The material of pre-filter
5, Slice use, slice framing use, whole volume use
Material and Features:
It is made of polyester fiber (PET) with elasticity and breaking resistance after carding, and the mesh is encrypted step by step by hot air fusion process
It can be cleaned and reused, or the dust can be removed by beating and backblowing and continue to be used
It has certain anti-corrosion effect on general solvents, weak acids and weak bases
Technical parameters:
Filter Level :F4(EN779), EU4 (EUROVENT)
Filter Object: Filter particles ≥5μm
Average Efficiency: ≥95% (ASHRAE52.1-1992)
Inflaming Retarding Classification: F1 (DIN 53438), B1 (GB/T17591-2006)
Final Pressure: 250Pa (recommended)
Dust Holding Capacity: 400g/m2
Humidity Resistance (Relative Humidity): ≤ 100%RH
Temperature Resistance :≤100℃
Instantaneous Temperature Resistance:≤120℃
Specification :
Model | Size | Rates Air Velocity
(m/s) | Initial Pressure Drop
(Pa) | Rated Air Flow
(m3/h) |
H(m) | W(m) | T(m) |
HY-AZ40 | 20 | 1/2 | 20±2 | 1.0 | ≤30 | 3600 |
NOTE: other specifications can be customized. |
