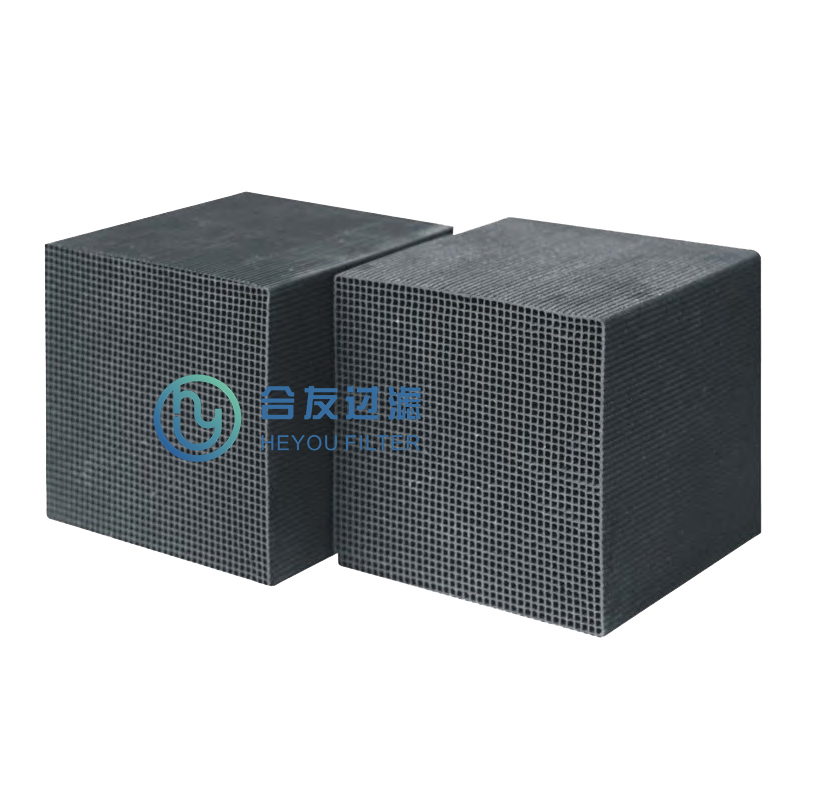

HY-ACFW Honeycomb Activated Carbon
Applications: It is widely used in various organic waste gas purification systems with low concentration and large air volume
Fresh air system supply air purification
Exhaust gas discharge primary or secondary purification
Technical parameters:
Filter Object: low concentration of odor, odor, formaldehyde, benzene, ammonia and other organic matter
Humidity Resistance (relative humidity): ≤ 80%RH
Temperature resistance :≤100℃
Instant Temperature resistance :≤120℃
Material and Features:
Filter material: high quality coal plus clay, common type and waterproof type
Features: The wind resistance coefficient is small, with good adsorption, desorption performance and gas dynamics performance, can be widely used in the purification of benzene containing toluene, xylene, benzene, phenols, lipids, alcohols, aldehydes and other organic gases, odor gases and various gases containing trace metals
Specification :
Model | Dimensions | Cell Density/in2 | Iodine Value | Adsorption Rate |
H(mm) | W(mm) | T(mm) |
|
HY-ACFW | 100 | 100 | 100 | 50-300 | ≥700 | ≥30% |
50 | 50 | 100 |
Note: other specifications can be customized |
