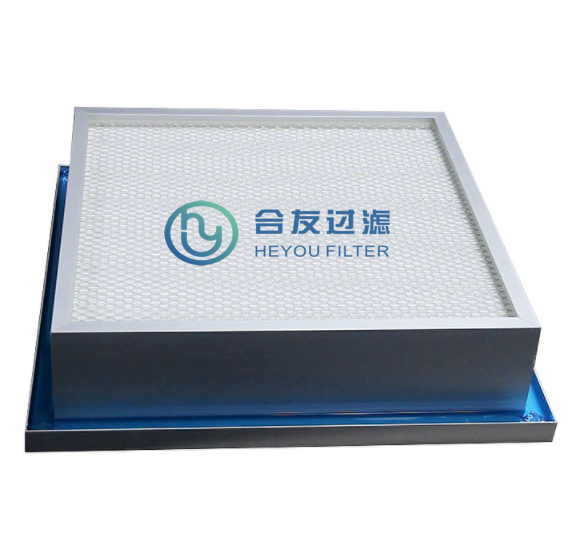

HY303-CYC Gel Seal HEPA Filter
Advantages:
High efficiency (main capture 0.3μm)
Thin thickness (minimum thickness 25mm)
Low resistance
Low weight
Applications:
Terminal filtration of commercial and industrial ventilation systems and air conditioning systems
1, clean room fresh air conditioning system, dust free workshop air outlet final stage filtration
2, more used in pharmaceutical, hospital, food hygiene, biological products, health products and other clean room end filtration
Material and Features:
Filter level: H13, H14, U15, U16, U17(EN779)
Filter object: ≥0.5μm, ≥0.3μm, ≥0.1μm
Filtration efficiency: 99.99%, 99.999%, 99.9999%, 99.99999%(ASHRAE52.1-1992)
Humidity resistance (relative humidity) : ≤100%RH
Temperature resistance: ≤80℃
Instant temperature resistance: ≤100℃
Technical parameters:
Filter material: ultrafine glass fiber paper, artificial fiber filter paper
Separator: hot melt adhesive
Protective net: diamond shaped metal paint net
Frame: Aluminum alloy frame
Tank sealant: Persistent jelly glue
Sealant: two component AB adhesive
Features: small size, large filtering area, low resistance and high efficiency
Easy to install, reliable and durable seal
Specification :
Dimensions | Rated Air Flow
(m3/h) | Initial resistance at different wind speeds(PA) | Filter Efficiency % |
H(mm) | W(mm) | T(mm) | 0.25m/s | 0.5m/s | 0.75m/s |
450 | 450 | 90/93 | 500 | ≤120 | ≤220 | ≤240 | 99.99% 99.999% 99.9999% 99.99999% |
610 | 610 | 90/93 | 1000 |
915 | 610 | 90/93 | 1500 |
1220 | 610 | 90/93 | 2000 |
Note: Other specifications can be customized according to requirements,90mm thick for the side tank, 93 thick for the top tank |
