Efficient air supply outlet
Applications:

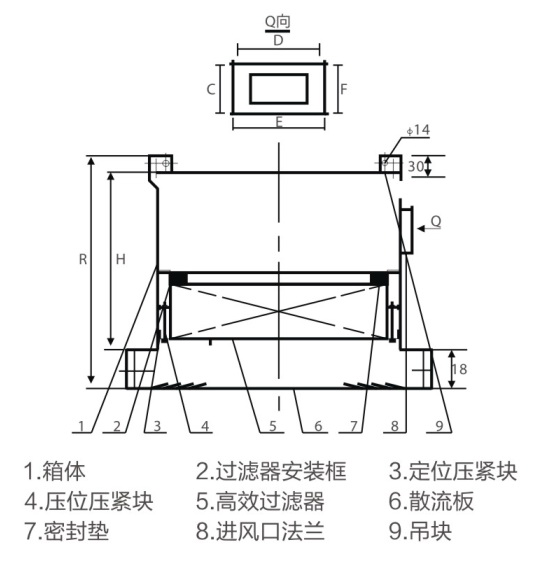

Air conditioning, clean room and ventilation systems, installation of high efficiency filters and terminal devices for airflow diffusion; It is a filter component composed of a high efficiency filter and a supply air outlet, which is composed of a filter, a box and a diffusion hole plate, and the air inlet can be placed on the top or side of the box.
1. Intelligent microcomputer control panel, easy to operate. The air shower room is equipped with a smart touch control panel, which is convenient to set the mode and shower time, the infrared sensor at the bottom, and the switch automatically controls the shower
2. Equipped with the primary effect filter and high efficiency no partition filter, the air is pre-filtered by the primary effect filter, the low noise centrifugal fan pressure into the static pressure box, after the high efficiency filter can rotate the nozzle from all directions, effectively and quickly remove the dust particles carried by the person
3. Spray wind speed ≥25m/s all stainless steel nozzle can adjust the spray direction
4. It is a device for personal purification and preventing polluted air from entering the clean room area
Material and Features:
The shell is made of high quality cold rolled steel
Electrostatic spraying on the surface
Ensure the jet speed of the air stream and prevent eddy currents
Simple structure, easy to install and maintain
Specification :
Model | Plenum size | Filter size | Nominal air delivery
(m3/h) | Inlet duct size | Air Inlet Pipe Dimensions | Ring size | Weight |
Side air supply | Top air supply |
HY-320 | HY-320D | 370*370*350 | 320*320*220 | 400 | 200*200 | 344*344 | 344*344 | -20 |
HY-484 | HY-484D | 543*543*530 | 484*484*220 | 1000 | 320*200 | 250*250 | 508*508 | -26 |
HY-610 | HY-610D | 660*660*460 | 610*610*150 | 1000 | 320*250 | 370*250 | 634*634 | -30 |
HY-820 | HY-820D | 870*650*460 | 820*660*150 | 1200 | 320*250 | 370*300 | 884*624 | -35 |
HY-630 | HY-630D | 680*680*530 | 630*630*220 | 1500 | 320*250 | 370*300 | 654*654 | -35 |
HY-726 | HY-726D | 776*534*530 | 726*484*220 | 1500 | 400*200 | 370*300 | 750*508 | -35 |
HY-915 | HY-915D | 965*660*460 | 915*610*150 | 1500 | 500*250 | 550*300 | 939*634 | -40 |
HY-968 | HY-968D | 1018*534*530 | 968*484*220 | 2000 | 500*200 | 550*250 | 992*508 | -50 |
HY-1220 | HY-1220D | 1270*660*460 | 1220*610*150 | 2000 | 500*200 | 550*250 | 1244*634 | -55 |
HY-945 | HY-945D | 995*680*543 | 945*630*220 | 2200 | 500*250 | 550*300 | 969*654 | -50 |
HY-1260 | HY-1260D | 1310*680*530 | 1260*630*220 | 3000 | 650*300 | 650*300 | 1284*654 | -60 |
