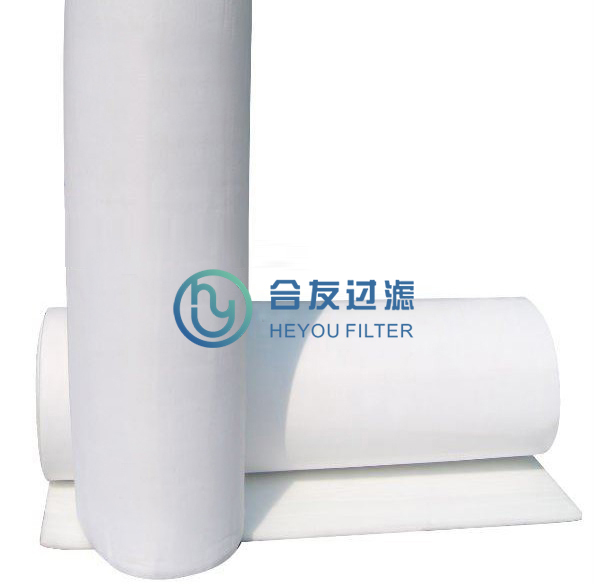

HY-CF600 Ceiling Filter Media

Advantages:

1. High dust holding capacity.

2. With better resistance to corrosion of general solvent, weak acid and weak alkaline.

3. All outlet side pasted with a layer mesh or cloth to reinforce, ensure the strength and effect of air uniformity.

4. Glue fully penetrating media, every fibre is treated with sticky glue, improve the longer adhesive capacity of collected particles, in order to meet the coating technique in the strict quality requirments.

5. Low resistance.

Applications:
1. Filtering micro particles in spray booth air inflow system.2. Dust removal in Painting equipment, painting system and painting workshop.3. Secondary filtering in high-quality painting system and air intake system of baking equipment.4. Medium filter media for producing air filter5. Can be customized in pad /cutting in piece/ in roll, or make pt pad with frame.

Material and Features:

It is made of polyester fiber (PET) with elasticity and breaking resistance after carding, and the mesh is encrypted step by step by hot air fusion process

Each fiber is treated with special viscosity, which increases the lasting adhesion of the captured particles to meet the stringent quality requirements of the coating technology

The air outlet surface is covered with net and cloth reinforcement, so as to ensure the strength and the effect of air flow equalization

It has certain anti-corrosion effect on general solvents, weak acids and weak bases

Technical parameters:
Filter Level :F5 (EN779), EU6 (EUROVENT)

Filter Object: Filter particles ≥1μm

Average Efficiency: ≥98% (ASHRAE52.1-1992)

Inflaming Retarding Classification: F5 (DIN 53438), B1 (GB/T17591-2006)

Final Pressure: 400Pa (recommended)

Dust Holding Capacity: 600g/m2

Humidity Resistance (Relative Humidity): ≤ 100%RH

Temperature Resistance :≤100℃

Instantaneous Temperature Resistance:≤120℃

Specification :
