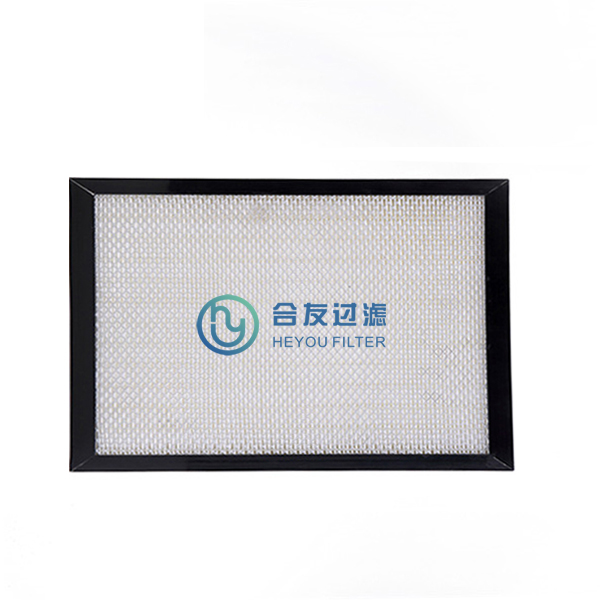

HY-WGB High Efficiency HEPA Filter
Advantage:
High efficiency (main capture 0.3μm)
Thin thickness (minimum thickness 25mm)
Low resistance
Low weight
Applications:
Terminal filtration of commercial and industrial ventilation systems and air conditioning systems
1. Clean room fresh air conditioning system, dust free workshop air outlet final stage filtration
2. FFU and other air purification equipment supply air main filtration
3. Widely used in electronics, optics, semiconductors, surface treatment, coating, Chemical, biopharmaceutical, hospital, automotive industry and other fields
4. Commercial and household air purifier final stage filtration
Material and Features:
Filter material: ultrafine glass fiber paper, artificial fiber filter paper
Separator: hot melt adhesive
Protective net: diamond shaped metal paint net
Features: small size, large filtering area, low resistance and high efficiency
Sealant: two component AB adhesive
Sealing strip: Foam EVA
Frame: aluminum alloy frame, galvanized iron frame, stainless steel frame, plastic frame, paper frame
Technical parameters:
Filter level: H10, H11, H12, H13, H14, U15, U16, U17(EN779)
Filter object: ≥0.5μm, ≥0.3μm, ≥0.1μm
Filtration efficiency: 99%, 99.9%, 99.99%, 99.999%, 99.9999%, 99.99999%(ASHRAE52.1-1992)
Humidity resistance (relative humidity) : ≤100%RH
Temperature resistance: ≤80℃
Instant temperature resistance: ≤100℃
Specification :
Dimensions | Rated Air Flow
(m3/h) | Initial resistance at different wind speeds(PA) | Filter Efficiency % |
W(mm) | H(mm) | D(mm) | 0.25m/s | 0.5m/s | 0.75m/s |
305 | 305 | 69 | 250 | ≤120 | ≤220 | ≤240 | 99% 99.9% 99.99% 99.999% 99.9999% 99.99999% |
305 | 610 | 69 | 500 |
610 | 610 | 69 | 1000 |
915 | 610 | 69 | 1500 |
1170 | 570 | 69 | 1800 |
Note: Other specifications can be customized according to requirements, commonly used thickness of 35mm,50mm,80mm,96mm |
